Expertise
FEMdesigner Ltd. does a lot of stress analysis consultancy; mainly in the nuclear, automotive and oil/gas sectors. If you have a problem you don't have the resource or experience to solve then please contact us for a quote.....unlike most others, we don't just know how to use design codes & software, we intimately know the theories behind the codes (and the bits they miss out) and the maths behind the software!
Past Projects Selection

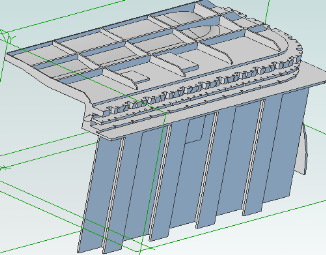

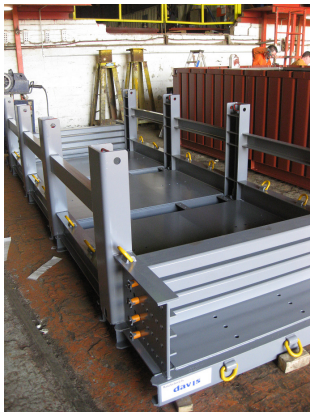

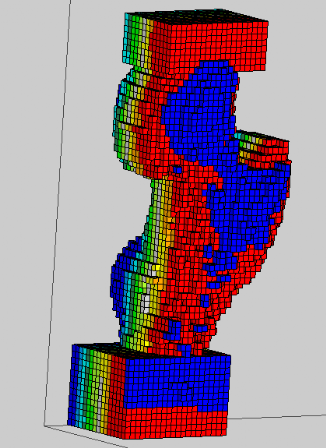

Top: Corroded pipe plasticity (FE model from laser scan), crush test of hip bone, 30Te stillage; nuclear waste large items.

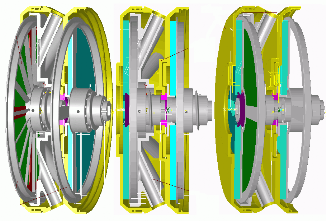

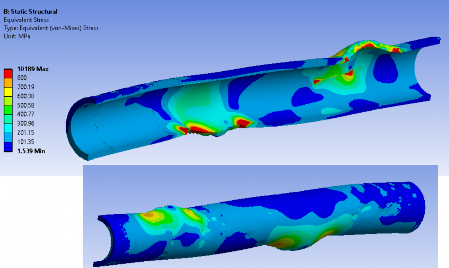

Centre: More corroded pipe plasticity, Beam Line Vessel for ITER nuclear fusion reactor, stackable cartridge fuel cells.

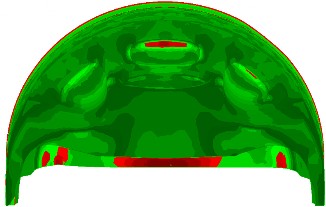

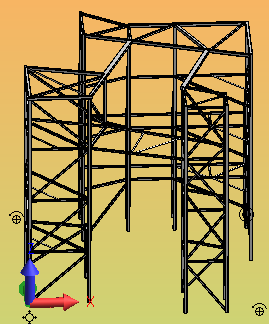

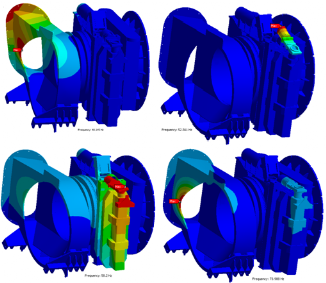

Bottom: Piston fatigue damage map, 11m high modular maintenance frame for Jet fusion reactor, Iter reactor front end natural frequencies.
![](images/plasticity-pipe.png)
![](images/boneadamstance_ei9yne33.png)
![](images/full-stillage.png)
![](images/tank_model.png)
![](images/MAAPS-exploded-view2.png)
![](images/chrysaor-pipe2.png)
![](images/jet-frame.png)
![](images/front-end-iter.png)
![](images/Bot_outer.jpg)
